Standard Air Cylinders (Round Type）

Air Cylinder CG1/CDG1

    ?A single acting type has been added./A direct mount type has been
    　added./An end lock type has been added. [New]
    ?Improved piping flexibility
    ?Piping can be connected every 90 degrees (4 positions). (Made to order:
    　XC3)
    ?Cylinder with rod end bracket is standardized.
    ?Interchangeable in mounting with the existing model
    ?Various mounting bracket options
    ?Part numbers for products with a rod end bracket and/or a pivot bracket
    　It is not necessary to order a bracket for the applicable cylinder
    　separately.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
TypeSeriesActionBore size (mm)
StandardCG1-Z1Double acting single rod20，25，32，40，50，63，80，100
StandardCG1-Z1Single acting, Single rod (Spring return/extend)20，25，32，40
Direct mountCG1R-Z1Double acting, Single rod20，25，32，40，50，63
With end lockCBG1-Z1Double acting, Single rod20，25，32，40，50，63，80，100

Features

Improved piping flexibility (Made to order: XC3)

?Piping can be connected every 90 degrees (4 positions).
?Suitable piping position can be selected during designing phase.

Cylinder with rod end bracket is standardized.

Interchangeable in mounting with the existing model

? Excludes long stroke types

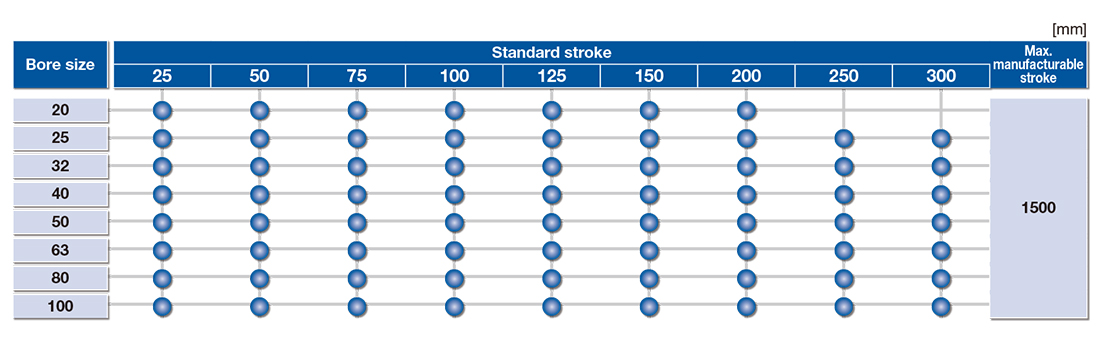

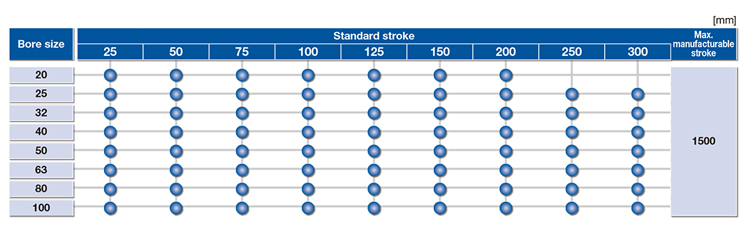

Stroke Variations

Various mounting bracket options

?Mounting brackets suitable for various installation conditions
?Improved mounting flexibility

Part numbers for products with a rod end bracket and/or a pivot bracket

It is not necessary to order a bracket for the applicable cylinder separately.
＊ Mounting brackets are shipped together with the product but do not come assembled.

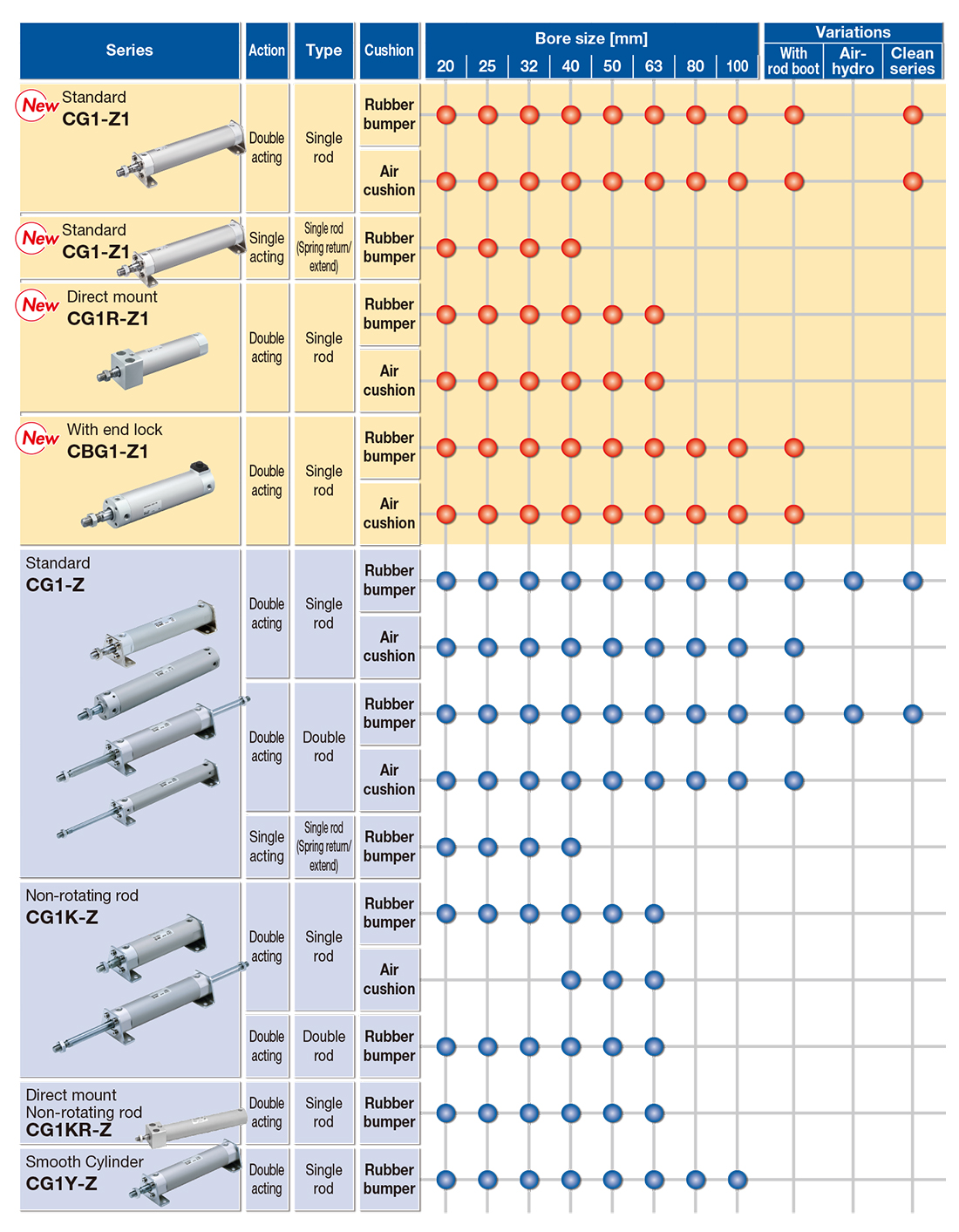

Series Variations

＊ Click here for details on the clean series.
