WEB Catalog

Product Information ?  WEB Catalog  ? IO-Link Compatible Products  ? Ionizers

Ionizers

Ionizer / Bar Type IZS51

    ?High speed static neutralization: Fastest time 0.1 s
    ?Space saving: Height 70 mm x Width 28 mm
    　Compact and flat body
    　Can be mounted in narrow spaces
    ?Supports the IO-Link communication protocol
    ?Low maintenance cartridge
    　Concentrating the air (for reducing emitter contamination)
    　around the emitter and the assisting air (for ion transfer)
    　Reduces dirt on the emitter, compared with the existing model
    ?Valve unit option
    　For reduction in air consumption by stopping air purge during stand-by
    　mode

    　?IO-Link Devices
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Ionizer / Bar Type IZS51
    Manual
    Series View search result
    IZS51View search result
  • Ionizer / Bar Type IZS51
    DoC
    Series View search result
    IZS51View search result
SeriesIon generation methodOffset voltage
(Ion balance)		Function
IZS51Corona discharge typeWithin ±30 VAuto ion balance
Maintenance detection
High voltage abnormality detection
Ion generation stop input

Features

High speed static neutralization: Fastest time 0.1s ?1

?1 Conditions: Discharge time from 1000 V to 100 V
Object to be neutralized: Charged plate (Dimensions: 150 mm x 150 mm, Capacitance: 20 pF)
Installation distance: 100 mm (Tungsten emitter, Air purge: 0.3 MPa)



Space saving: Height 70 mm x Width 28 mm

Compact and flat body

Compact body with piping on one side

Can be mounted in narrow spaces

Valve unit option

With auto balance function

Piping on one side possible

Low maintenance cartridge

Improved maintainability

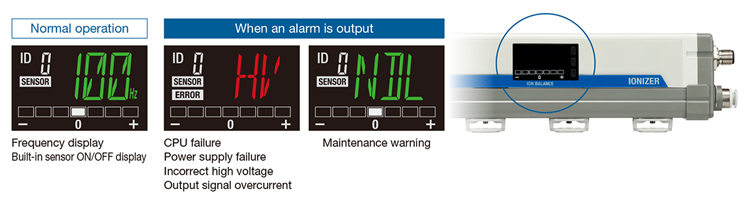

Maintenance detection function

Operation status can be checked at a glance.

Output signals check function

2 types of brackets are available.

The ionizers can be set with a remote controller.

Safety function

Supports the IO-Link communication protocol

Application examples
