WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Standard Air Cylinders (Round Type）

Standard Air Cylinders (Round Type）

Air Cylinder CG1/CDG1

    ?Improved piping flexibility
    ?Piping can be connected every 90 degrees (4 positions). (Made to order:
    　XC3)
    ?Cylinder with rod end bracket is standardized.
    ?Interchangeable in mounting with the existing model
    ?Various mounting bracket options
    ?Part numbers for products with a rod end bracket and/or a pivot bracket
    　It is not necessary to order a bracket for the applicable cylinder
    　separately.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
TypeSeriesActionBore size (mm)
StandardCG1-Z1Double acting single rod20，25，32，40，50，63，80，100

Features

Improved piping flexibility (Made to order: XC3)

?Piping can be connected every 90 degrees (4 positions).
?Suitable piping position can be selected during designing phase.

  • Cylinder with rod end bracket is standardized.

  • Interchangeable in mounting with the existing model

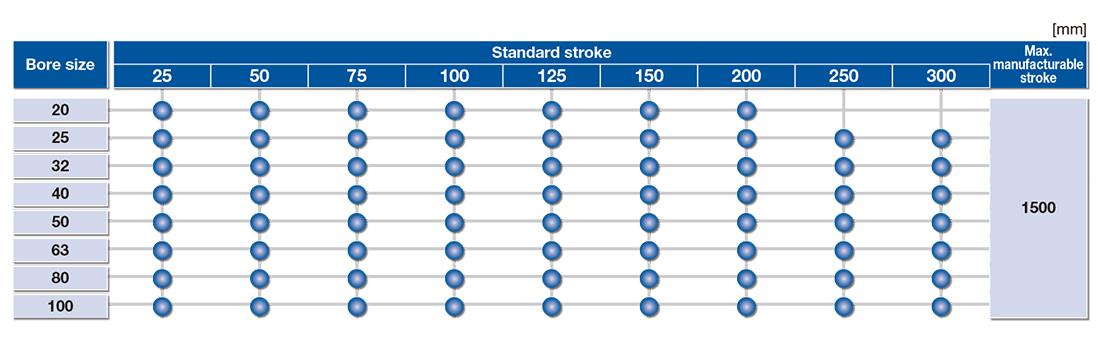

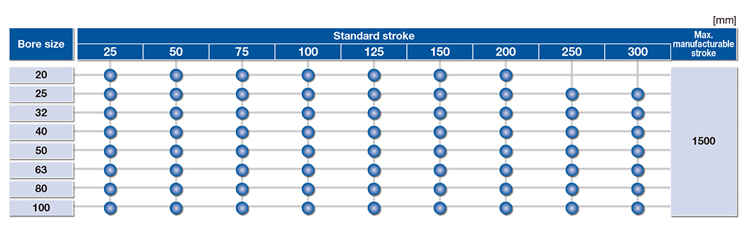

Stroke Variations

Various mounting bracket options

?Mounting brackets suitable for various installation conditions
?Improved mounting flexibility

Part numbers for products with a rod end bracket and/or a pivot bracket

It is not necessary to order a bracket for the applicable cylinder separately.
＊ Mounting brackets are shipped together with the product but do not come assembled.

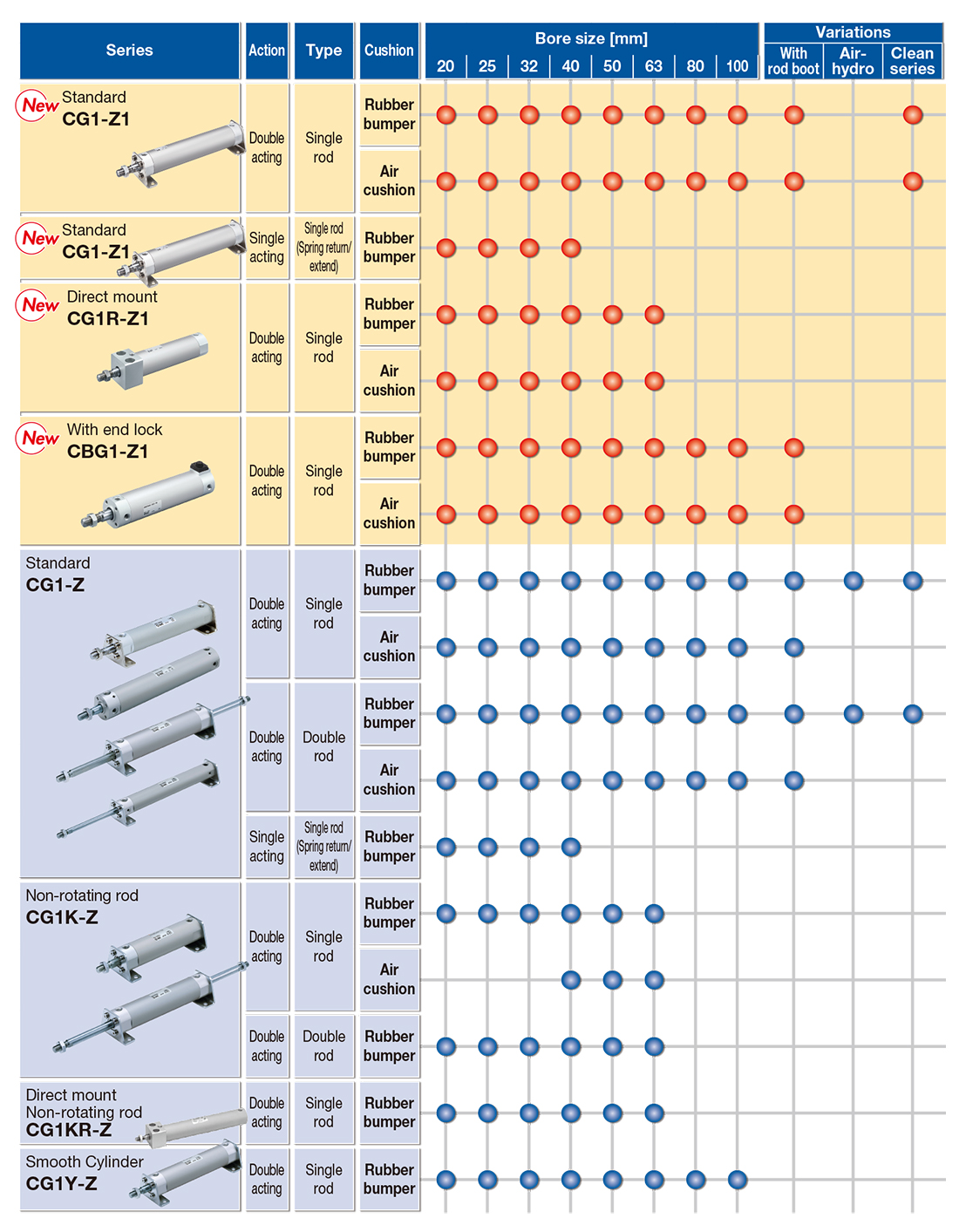

Series Variations

＊ Click here for details on the clean series.
