WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Clamp Cylinders

Clamp Cylinders

Power Clamp Cylinder CKZ5T

    ?A new structure has achieved downsizing.
    　Overall length reduced by 49 mm max.
    　Depth reduced by 17.3 mm max. (Interchangeable with existing product
    CKZ3T in terms of installation)
    ?Weight reduced by up to 23%
    　Aluminum body with greatly reduced weight
    ?High clamping force 4000 N (?63, Arm length: 100 mm, 0.5 MPa)
    ?Manual lock release operability has been improved.
    ?Spatter-proof construction
    　Fully enclosed structure by means of an aluminum body
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Power Clamp Cylinder CKZ5T
    Manual
    Series Bore size (mm) View search result
    CKZ5T50，63View search result
SeriesArm opening angleSwitchBore size (mm)
CKZ5T15o，30o，45o，60o，75o，90o，105o，120o，135o TURCK/P&F50，63

Features

A new structure has achieved downsizing.

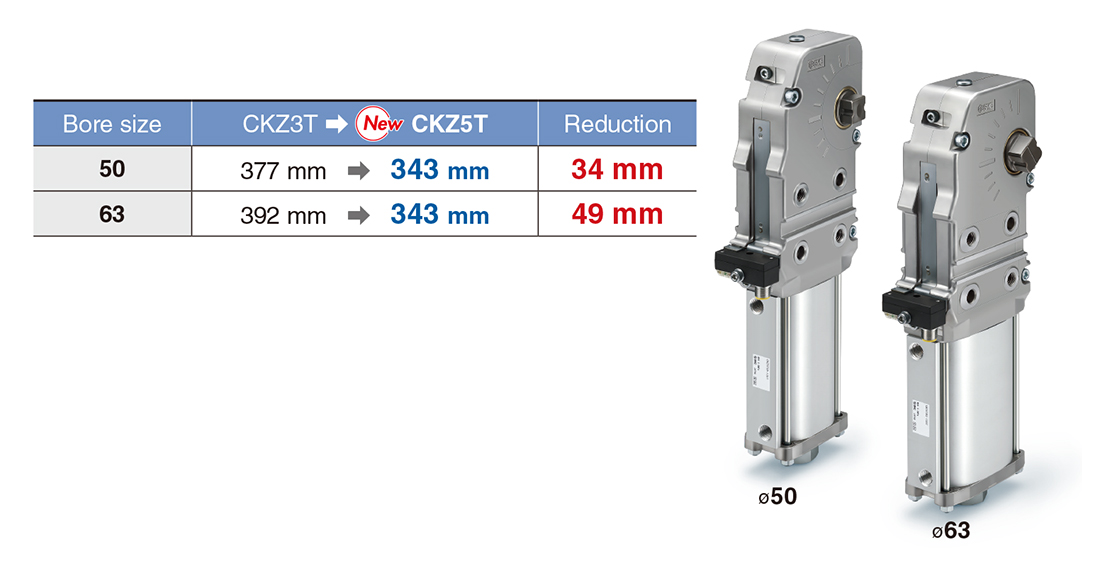

Overall length reduced by 49 mm max.



High clamping force 4000 N (?63, Arm length: 100 mm, 0.5 MPa)

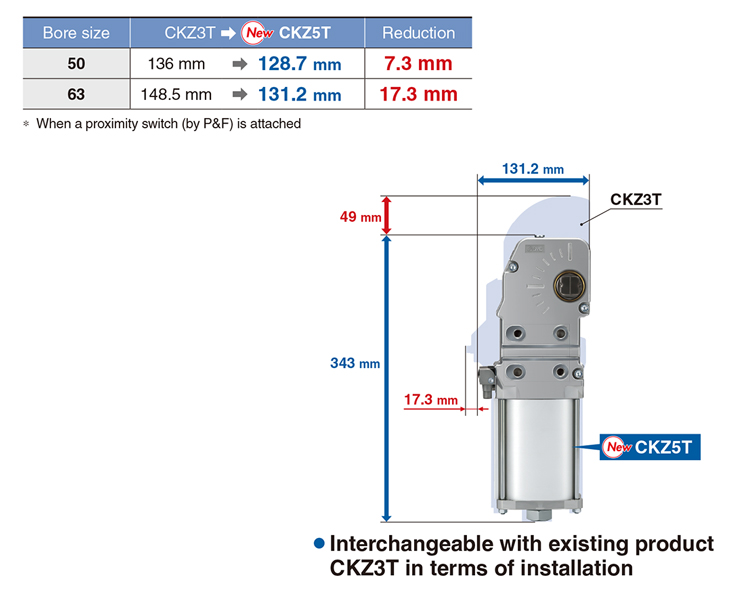

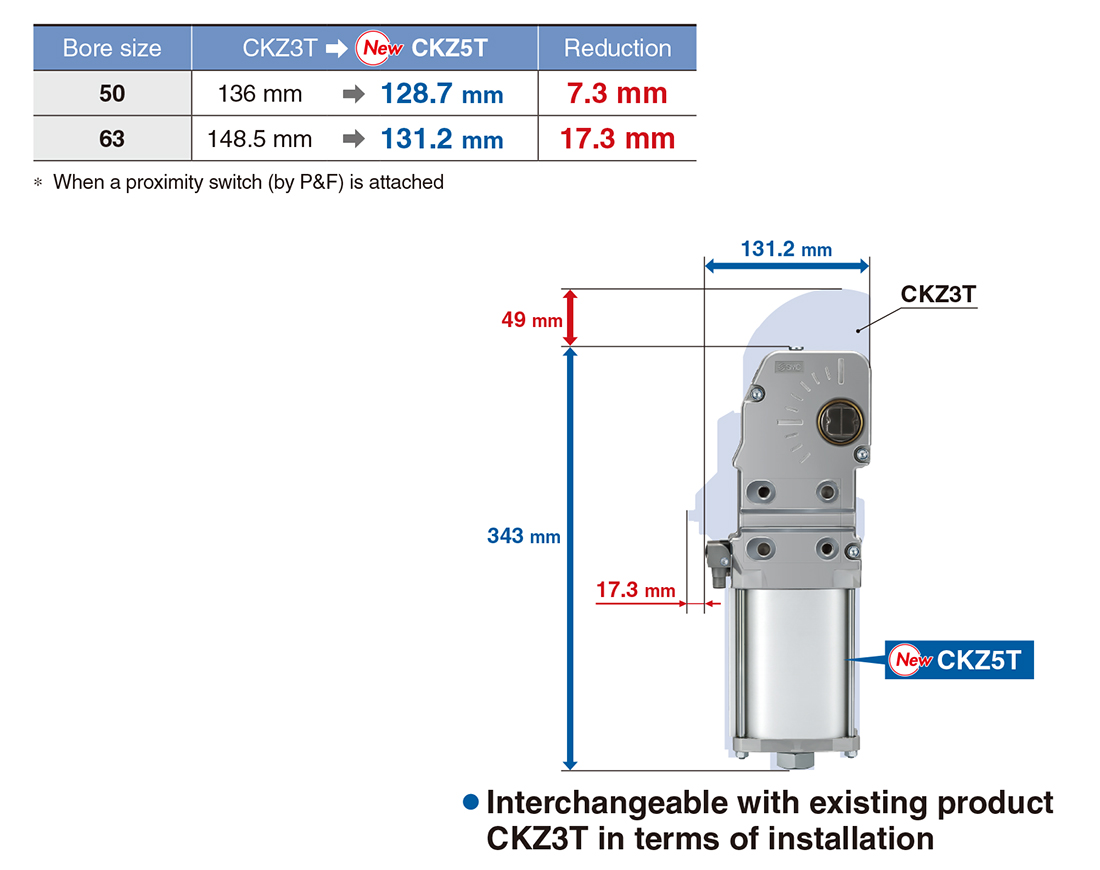

Depth reduced by 17.3 mm max.

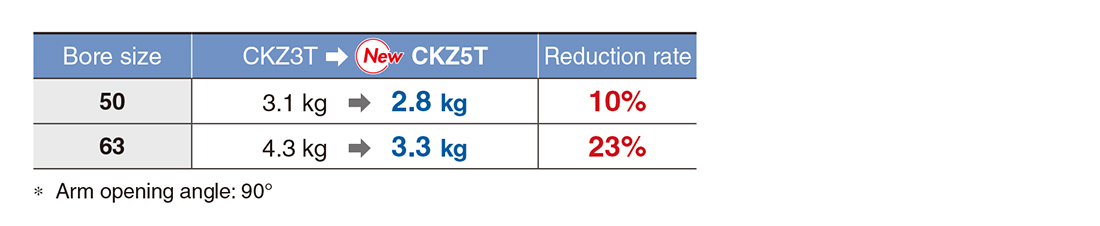

Weight reduced by up to 23%

Aluminum body with greatly reduced weight

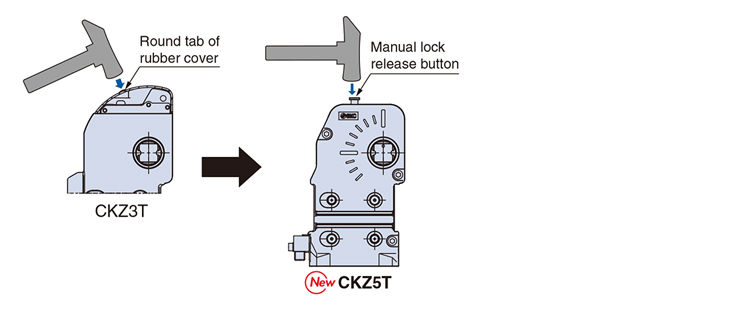

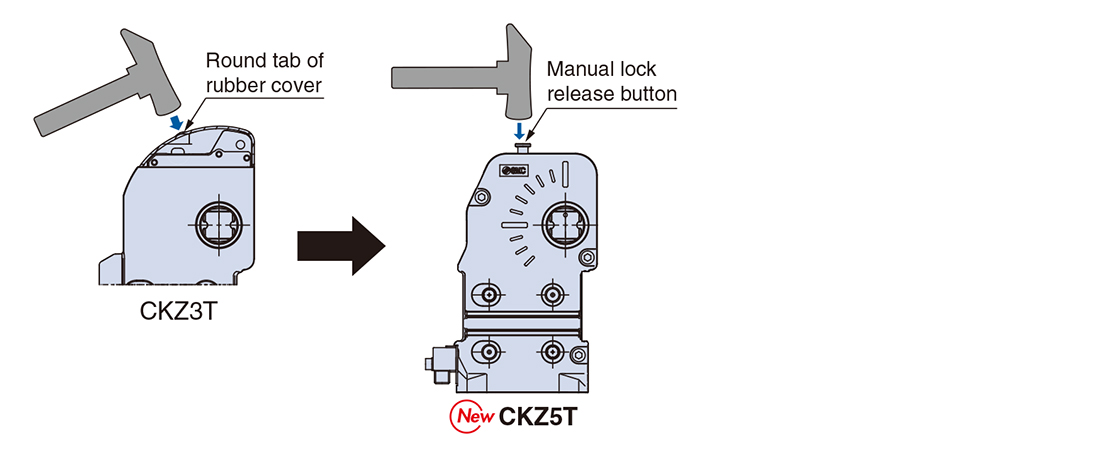

Manual lock release operability has been improved.

Spatter-proof construction

Fully enclosed structure by means of an aluminum body

Go Top
